LGX Patch Panel for High-Density Fiber Management and Connectivity

Performance Specifications & Datasheets

Specifications and downloadable datasheets for each available rack unit configuration. All models share a 15.5” depth and 17” width in a standard 19-inch rack form factor.

Key Features

• High-Density Fiber Management LGX panels support multiple fiber connections in a compact, rack-mountable design — making them ideal for data centers and telecom environments where maximizing port density per rack unit is critical to infrastructure efficiency.

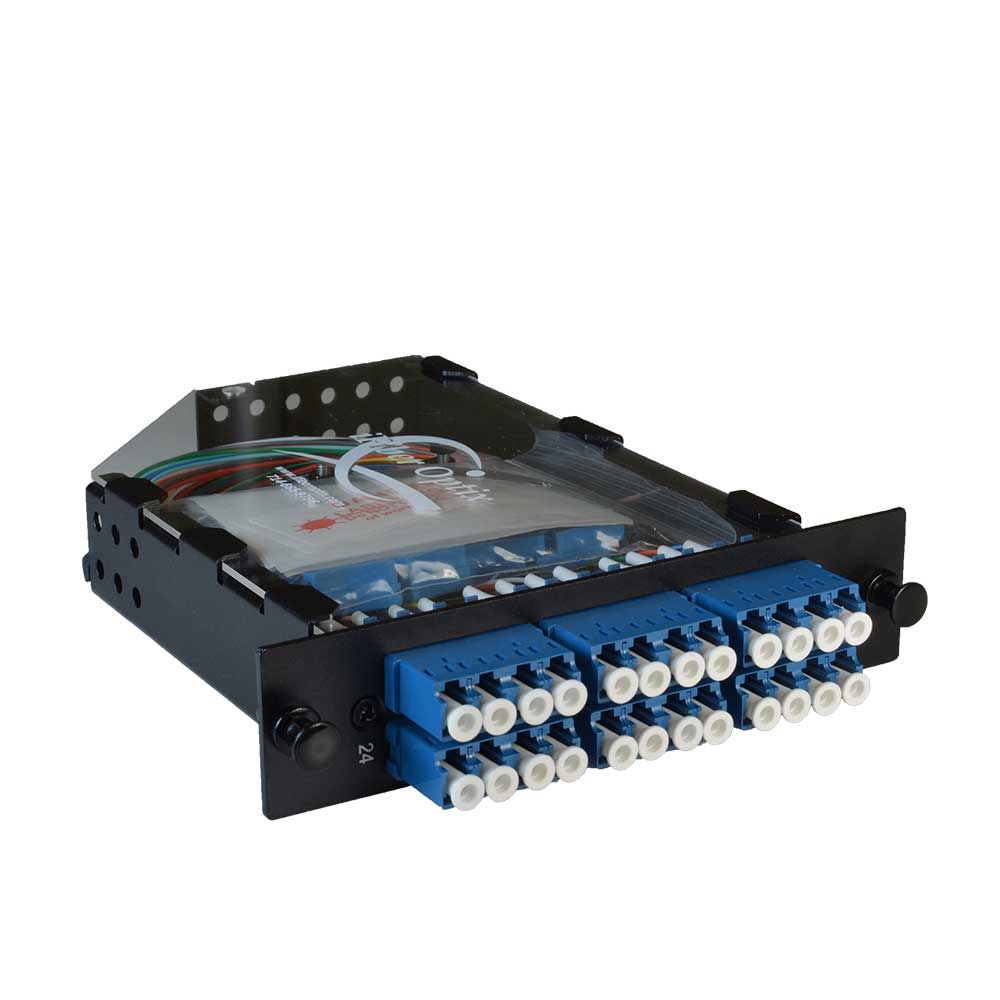

• Modular & Scalable Design The cassette-based system allows for easy network expansion and maintenance, accommodating future upgrades without network downtime — simply add or swap cassettes or adapter plates as your fiber capacity requirements grow.
• Front-Access for Easy Maintenance Front-facing access to all connectors simplifies installation, troubleshooting, and maintenance operations — reducing the time required for moves, adds, and changes in high-density rack environments where rear access is limited or impractical.
• Durable Construction Built with high-quality materials designed to withstand frequent handling and environmental stress — ensuring long-term reliability and consistent performance in demanding data center, telecom, and enterprise rack environments.
• Standard Rack Compatibility Designed to fit into standard 19-inch racks and enclosures, ensuring seamless integration with existing infrastructure — available in 1U through 5U heights and 11-inch or 15-inch depths to match your specific rack and cable management requirements.

Applications

• Data Centers LGX panels help manage multiple fiber connections efficiently in rack environments — optimizing rack space, reducing cable clutter, and ensuring smooth high-speed data flow between servers, storage systems, and networking equipment.
• Telecom Networks Used in telecommunication rooms and central offices, LGX patch panels simplify fiber management and support easy upgrades and troubleshooting — providing an organized, accessible termination point for high-density fiber distribution.
• Enterprise Networks LGX panels enable scalable fiber management across large enterprise infrastructures — ensuring consistent performance and organized fiber routing in MDF and IDF rooms, wiring closets, and distributed equipment rooms across office buildings and campuses.
• FTTH Deployments Ideal for managing fiber connections in Fiber to the Home networks — providing organized, high-density fiber termination at headend and distribution locations supporting large-scale residential and MDU fiber access network deployments.
• Campus Networks LGX panels help manage multiple fiber links across large campuses, ensuring reliable and fast communication between buildings — supporting inter-building backbone cabling, network aggregation points, and campus distribution frame locations.

How to Choose the Right LGX Patch Panel

• Number of Fiber Connections Choose a panel height (1U–5U) that accommodates your current fiber count while allowing room for future expansion — the modular cassette system ensures you can add capacity incrementally without replacing the panel chassis.
• Rack Compatibility Ensure the panel fits into your existing 19-inch racks or cabinets and select the appropriate depth (11” or 15”) to match your rack depth and cable management clearance requirements.
• Environmental Conditions For harsh environments, opt for ruggedized enclosures to protect the panel and fiber connections from physical damage, dust, and temperature extremes — standard panels are well suited for conditioned data center and telecom room environments.
• Network Growth Plans Select a modular, scalable panel configuration to accommodate future upgrades and increased bandwidth demands — the LGX platform ensures new cassettes and adapter plates can be added as your network infrastructure evolves.

Why Choose iFiber Optix?

• Quality Assurance Every LGX Patch Panel is manufactured to exacting standards and thoroughly inspected before shipment — ensuring structural integrity, proper cassette fit, and long-term performance reliability in high-density rack environments.
• Custom Solutions Whether you require custom configurations, specific adapter plates, or ruggedized enclosures, iFiber Optix can design a solution tailored to your exact requirements — built to industry-leading standards for lasting reliability and optimal performance.
• Expert Support Our team of experienced fiber optic professionals is available to help you select the right panel configuration for your network — from initial specification through installation guidance and post-deployment technical support.
• Competitive Pricing & Fast Turnaround We deliver high-quality LGX Patch Panels at competitive prices with efficient fulfillment — ensuring quick delivery times to keep your data center, telecom, or enterprise network projects on schedule.
