O-Series 1U Panel Housing
The IFR-1U-OHSE is a 1U rack mount panel designed to support high-density fiber deployments using O-Series cassettes or adapter plates. It fits standard 19-inch or 23-inch racks and cabinets, making it easy to integrate into a wide range of network environments.
Product Overview
The IFR-1U-OHSE is an unloaded 1U panel that accepts up to four O-Series cassettes or adapter plates, providing a flexible platform for building or expanding fiber infrastructure as needed. With a 17-inch depth, it offers ample space for cable routing and bend radius control behind the panel.
Design Note: Built for durability and ease of access, this panel helps keep fiber connections organized while simplifying installation, maintenance, and future upgrades in data center, telecom, and enterprise applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | 1U High-Density Rack Mount Panel |
| Model | IFR-1U-OHSE |
| Rack Units | 1U (1.75" height) |
| Rack Compatibility | 19-inch or 23-inch standard |
| Panel Depth | 17 inches |
| Module Capacity | Up to 4 O-Series cassettes/adapter plates |
| Material | Powder-coated steel chassis |
| Finish | Black matte |
| Mounting Hardware | Rack ears with #10-32 screws included |
| Weight | 8.2 lbs (unloaded) |
Key Features
- High-Density Design Supports up to four O-Series cassettes or adapter plates in a single 1U space for maximum fiber capacity per rack unit.
- Universal Rack Fit Compatible with both 19-inch and 23-inch racks/cabinets for seamless integration across diverse network environments.
- Optimized Cable Management 17-inch depth provides generous rear space for organized cable routing and proper bend radius protection.
- Service-Friendly Access Front-access design simplifies cassette loading, patching, maintenance, and future network expansions.

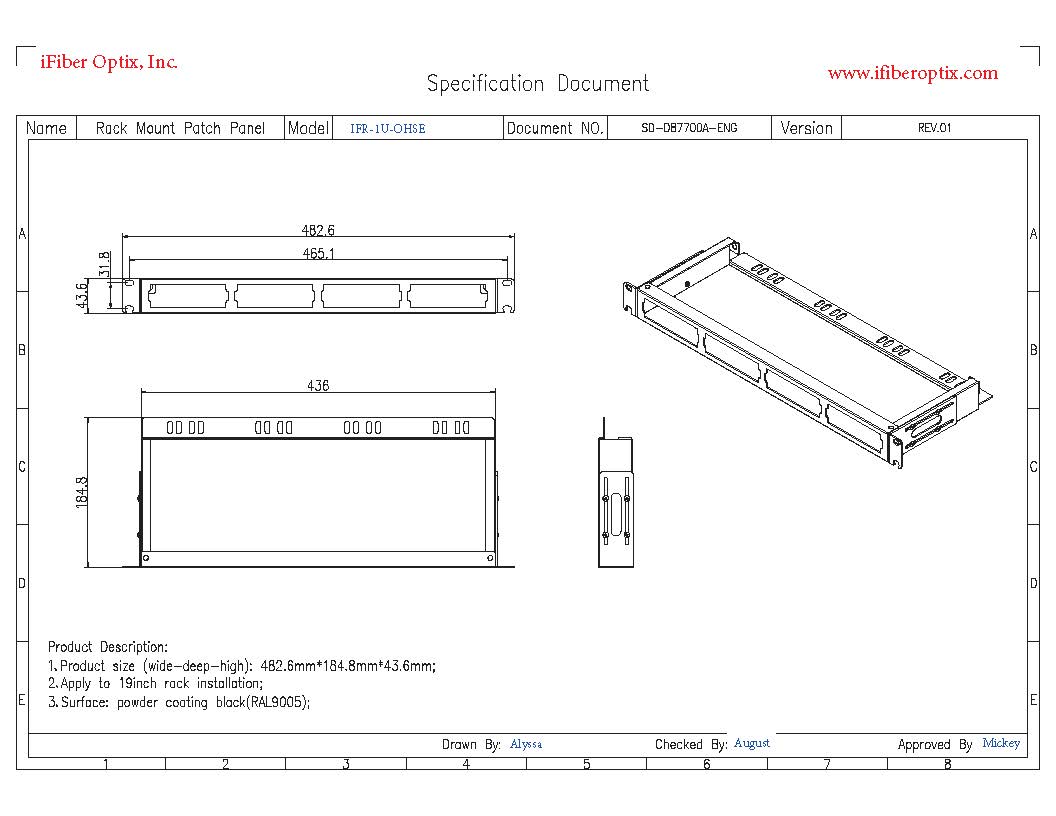

Panel Drawing & Applications
Primary Applications
- Data Centers: Top-of-rack, end-of-row, zone distribution
- Enterprise: MDF/IDF cross-connect panels
- Telecom: CO backhaul termination panels
