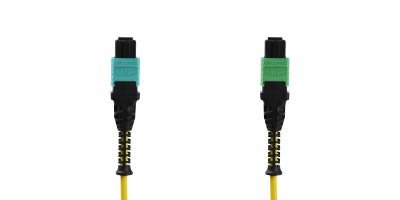

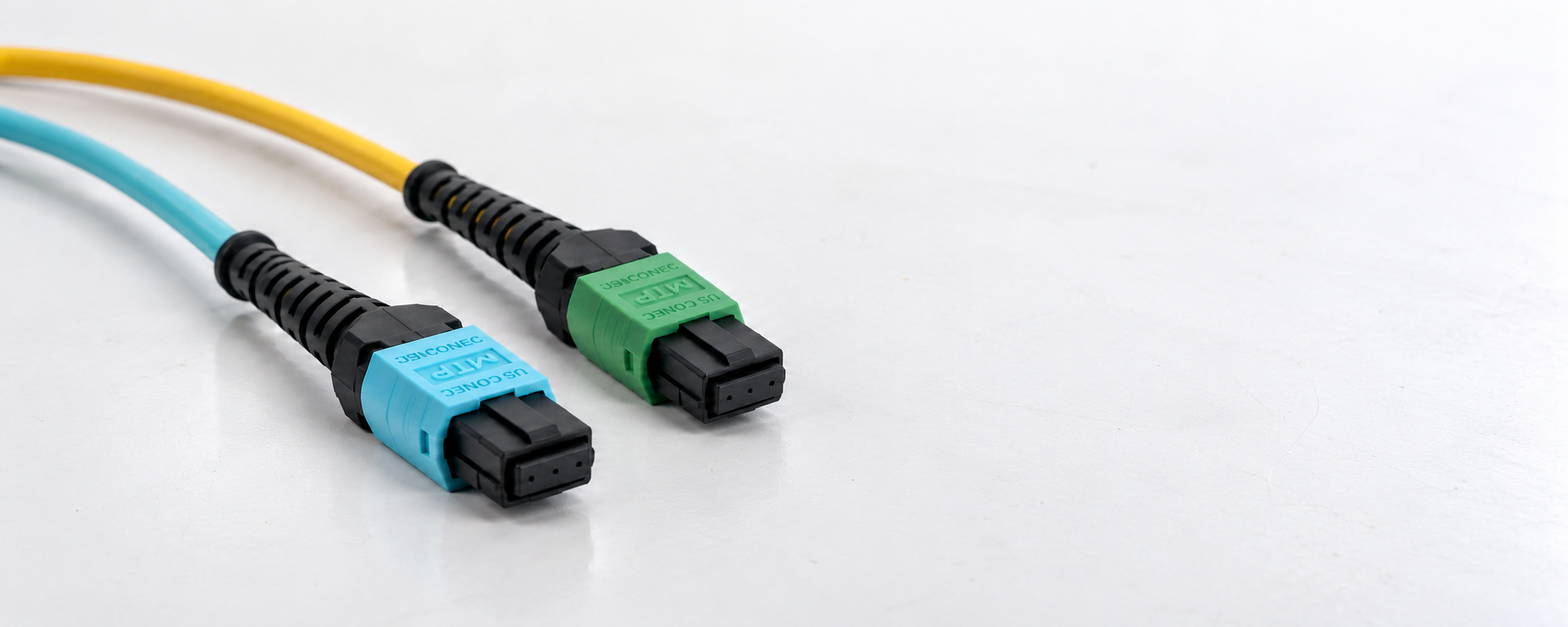

Multi-Fiber Push-On Connector
MTP® 16
Sixteen fibers,
one connection.
The US Conec MTP-16 delivers 33% more fiber density than MTP-12 in the same footprint — built for the hyperscale data center deployments that demand every millimeter of rack space.
16f
Fibers per connector
33%
More than MTP-12
500+
Mating Cycles
MT Ferrule Alignment
Push-Pull Housing
Singlemode · Multimode
US Conec Certified
Product Overview
Maximum density,
engineered from the core.
The MTP-16 is a 16-fiber multi-fiber push-on connector built around the MT ferrule standard. Its precision-molded ferrule, guide pins, and push-pull housing work together to deliver repeatable sub-0.35 dB insertion loss across hundreds of mating cycles — in both singlemode OS2 and multimode OM3/OM4/OM5 configurations.
≤0.35dB
Typical IL
≤0.5dB
Max IL
≥26dB
Return Loss (SM)
−20–70°C
Operating Temp
Engineering
Built for the demands of
high-density infrastructure.
01
High-Density 16-Fiber Architecture
Packs 16 fibers into the same MTP footprint as a 12-fiber connector — delivering 33% more capacity per connection point without changing your cassette or panel infrastructure.
02
MT Ferrule Precision Alignment
The precision-ground MT ferrule with stainless steel guide pins maintains fiber-to-fiber alignment within microns, ensuring consistent optical performance on every mating cycle.
03
Ultra-Low Insertion Loss
≤0.35 dB typical insertion loss across all 16 fibers — engineered for systems where cumulative signal loss across hundreds of connections cannot be compromised.
04
Push-Pull Latching Housing
The patented push-pull housing allows one-handed blind-mate insertions and extractions even in fully loaded panels — critical in high-density rack environments where access is constrained.
05
Singlemode & Multimode Support
Available in OS2 singlemode (UPC polish) and OM3/OM4/OM5 multimode — both versions share the same housing geometry, simplifying inventory and system design.
06
US Conec Certified Platform
Manufactured under US Conec's rigorous quality program — each connector is tested and documented against published performance specifications for complete traceability.
Specifications
Performance specifications.
Singlemode
OS2 · UPC
| Fiber Count | 16 |
| Typical Insertion Loss | ≤ 0.35 dB |
| Maximum Insertion Loss | ≤ 0.50 dB |
| Return Loss (UPC) | ≥ 26 dB |
| Mating Cycles | 500+ |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Fiber Type | OS2 SMF-28e+ |
Multimode
OM3 · OM4 · OM5
| Fiber Count | 16 |
| Typical Insertion Loss | ≤ 0.35 dB |
| Maximum Insertion Loss | ≤ 0.50 dB |
| Return Loss | ≥ 20 dB |
| Mating Cycles | 500+ |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Fiber Type | OM3 / OM4 / OM5 |
Use Cases
Where the MTP-16 performs.
Hyperscale Data Centers
Top-of-rack switch interconnects and main distribution frames where 400G/800G parallel optics demand 16-fiber parallel channels.
Telecommunications
Central office and colocation facilities requiring compact high-fiber-count connectors across 100G to 400G backbone deployments.
High-Density Panels
Pre-terminated MTP-16 trunk cables and modular cassette systems that maximize fiber per 1U panel beyond what MTP-12 can deliver.
Enterprise Campus
Building backbone and IDF-to-MDF infrastructure where a future upgrade path from 40G to 100G parallel optics is required.
Cloud Infrastructure
Spine-leaf fabric interconnects in large-scale cloud deployments where low latency and minimal connector loss budgets are critical.
Government / GSA
Federal and defense facilities requiring US Conec certified, fully documented connectors with traceable performance test data.
Configuration
Built to your specification.
Every MTP-16 assembly from iFiber Optix is configured to your exact requirements — fiber type, polarity, boot color, and connector finish — before it ships.
Fiber Type
SM & MM Options
OS2 singlemode for long-distance single-channel applications; OM3, OM4, or OM5 multimode for short-reach parallel optic systems.
Polarity
Type A, B, or C
Specified per TIA-568-C.0 standards — Type A (straight-through), Type B (reversed), or Type C (pair-wise reversed) to match your system design.
Finish
UPC or APC Polish
Flat UPC polish for standard multimode and singlemode applications; angled APC available on select singlemode builds for enhanced return loss performance.
Ordering Guide
How to configure your MTP-16.
01
Choose Fiber Type
Select OS2 singlemode or multimode (OM3 / OM4 / OM5) based on your transceiver requirements and link distance.
02
Specify Polarity
Determine polarity type (A, B, or C) from your network design. When in doubt, Type A is the most common starting point.
03
Select Length & Boot
Provide the cable length in meters or feet and specify boot color for easy identification in your cable management scheme.
04
Request a Quote
Contact iFiber Optix with your configuration. We'll confirm specs, lead time, and pricing — typically within one business day.
Why iFiber Optix
The iFiber Optix difference.
We don't just resell connectors — we configure, test, and document every assembly to your exact specification.
01
US Conec Authorized
Direct authorized distributor — every MTP-16 assembly carries authentic US Conec components with full manufacturer traceability.
02
Custom Assembly
Configure polarity, fiber type, length, and boot color. Every order is built and tested to your specification before it ships.
03
GSA Authorized Reseller
Federal procurement made simple — our GSA schedule covers MTP-16 assemblies for government and defense deployments with full compliance documentation.
Get Started
Ready to spec your MTP-16 assembly?
Tell us your fiber type, polarity, and quantity — we'll configure and quote within one business day.
