High-Density Rack Mount Y Series: Scalable Fiber Management Solutions
The iFiber Optix High-Density Rack Mount Y Series delivers scalable, high-capacity fiber management for demanding network environments. Engineered for maximum port density across a standard 19-inch rack form factor, these panels are designed exclusively for LC Duplex connectivity and support fiber counts up to 384 ports in a single enclosure.
Available in 1RU, 2RU, 3RU, and 4RU configurations, the High-Density Rack Mount Y Series supports up to 16 slots with a consistent 8.23-inch depth across all models. These panels integrate cleanly into existing data center, telecom, and enterprise rack environments while providing a clear upgrade path as fiber counts grow.

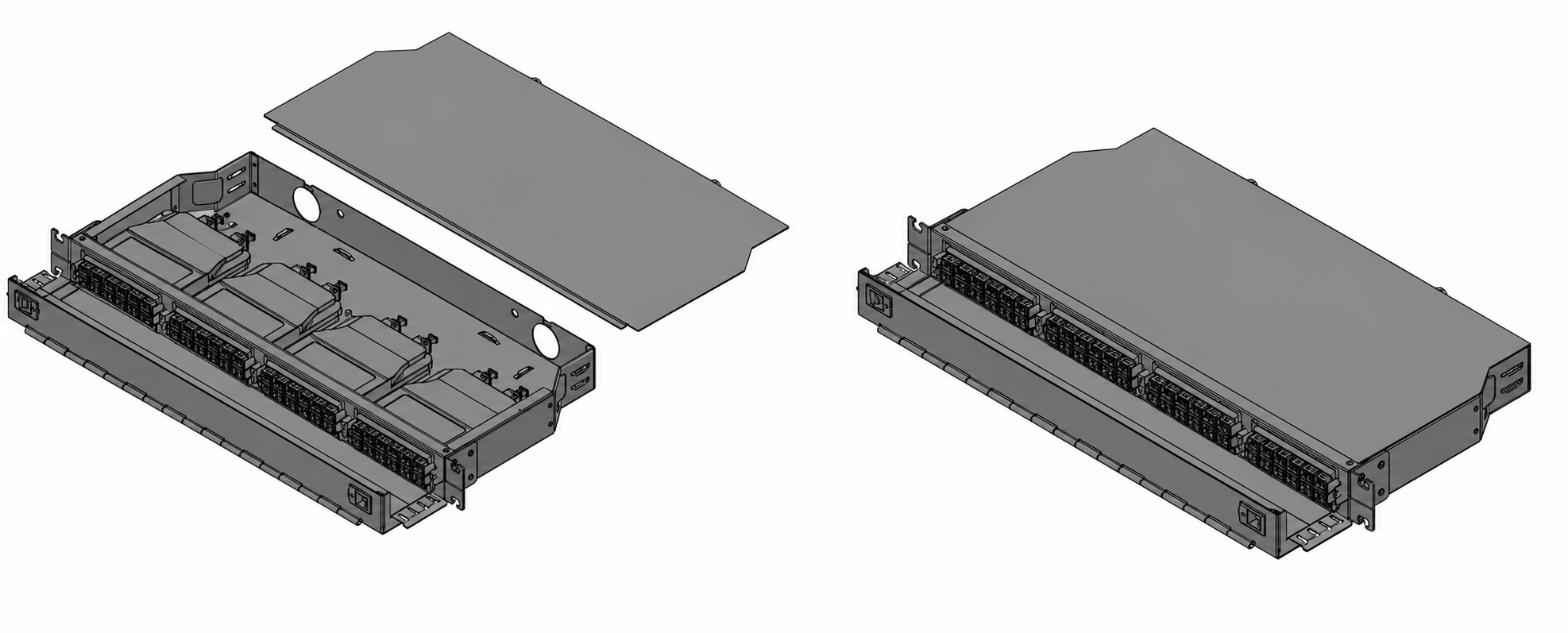

High-Density Rack Mount Y Series
The High-Density Rack Mount Y Series spans 1RU through 4RU with a uniform 8.23-inch depth across all models, keeping your rack footprint consistent regardless of configuration. Built for LC Duplex termination, each unit supports multiple slots and scales from 4 to 16 slot positions to accommodate high-count fiber infrastructure in a compact form factor.
Performance Specifications & Datasheets
Specifications and downloadable datasheets for each High-Density Rack Mount Y Series configuration. All models share a 19.00″ width and 8.23″ depth in a standard 19-inch rack form factor.
| Type | Model | Depth (in.) | Width (in.) | Height (in.) | Rack Units | Capacity | Max LC Duplex Cores |
|---|---|---|---|---|---|---|---|
| 1RU | IFR-Y-1U-4S | 8.23 | 19.00 | 1.73 | 1 | (4) slots | 96 |
| 2RU | IFR-Y-2U-8S | 8.23 | 19.00 | 3.47 | 2 | (8) slots | 192 |
| 3RU | IFR-Y-3U-12S | 8.23 | 19.00 | 5.22 | 3 | (12) slots | 288 |
| 4RU | IFR-Y-4U-16S | 8.23 | 19.00 | 6.97 | 4 | (16) slots | 384 |
Key Features
- Four Configuration Options Available in 1RU, 2RU, 3RU, and 4RU, with capacity scaling from 4 to 16 slots. The range accommodates everything from targeted low-density deployments to full high-count termination in a single rack location.
- High Fiber Count Capacity The 4RU configuration supports up to 384 LC Duplex ports across 16 slot positions, making it one of the higher-density options in the iFiber Optix rack mount lineup.
- LC Duplex Termination Purpose-built for LC Duplex connectivity, the Y Series delivers optimized high-density termination for modern fiber infrastructure where LC is the standard connector type.
- Uniform Depth Across All Models All Y Series models share an 8.23-inch depth, simplifying rack planning and cable management when deploying multiple configurations in the same cabinet.
- Durable Build Constructed with a black powder coat finish (RAL9005) for long-term durability and consistent appearance in standard rack environments.
- Standard 19-Inch Rack Compatibility Designed for standard 19-inch rack installation across all configurations, integrating cleanly with existing rack and cable management infrastructure.
Applications
- Data Centers Well-suited for high-density LC Duplex termination in core and edge racks, where consistent enclosure depth and scalable slot counts simplify structured cabling and future expansion.
- Telecommunications Supports large-scale LC fiber termination and distribution in central offices and headends, with fiber counts high enough to handle aggregation-layer cabling in a compact form factor.
- Enterprise Networks A practical choice for MDF/IDF rooms and campus backbone infrastructure where LC Duplex is the standard connector and a range of RU sizes reduces the number of panel types needed across a deployment.
How to Choose the Right Y Series Panel
- Fiber Count Requirements Start with your current LC Duplex fiber count and leave room for growth. The 1RU handles up to 96 ports, 2RU up to 192, 3RU up to 288, and 4RU up to 384. If you're close to a tier limit, go up one size.
- Rack Space Availability All models are 8.23 inches deep, so depth clearance is consistent. Account for available rack units before selecting a configuration, and factor in cable management space above and below the panel.
- Future Expansion If your fiber count is expected to grow, select a higher-RU configuration now rather than adding a second panel later. The slot system allows you to populate positions incrementally as demand increases.
- Operational Considerations Factor in how often you will perform moves, adds, and changes, and select the appropriate RU size to keep termination density manageable during on-site work.
Why Choose iFiber Optix?
- Quality Assurance Each Y Series panel is manufactured and inspected to ensure structural integrity and consistent performance across all rack unit configurations.
- Custom Solutions iFiber Optix can provide tailored configurations and slot counts to match your specific fiber architecture and deployment requirements.
- Expert Support Experienced fiber professionals are available to assist with product selection, capacity planning, and deployment guidance for Y Series installations.
- Competitive Pricing & Lead Times High-density panels offered at competitive prices with efficient fulfillment to keep your data center, telecom, or enterprise projects on schedule.
