Loopback Multimode MTP Assembly for Network Testing and Troubleshooting
The Loopback Multimode MTP Assembly from iFiber Optix provides an essential tool for network testing and troubleshooting. These assemblies loop back optical signals to simulate a live network environment, allowing technicians to test transmission quality, pinpoint faults, and validate device functionality.
Available in 12-fiber and 24-fiber configurations and compatible with OM2, OM3, and OM4 multimode fibers, these assemblies support network speeds from 10G to 100G — ideal for data centers, telecom networks, and high-speed Ethernet environments.
Loopback Multimode MTP Assembly
Loopback Multimode MTP Assemblies are diagnostic tools that simulate real-world conditions by routing optical signals back to the originating device. Designed for use with QSFP+ and MTP/MPO connectors, they allow technicians to isolate faults, validate optical links, and confirm device performance — all without disrupting live traffic or requiring a far-end connection.
How It Works & Technical Reference
The loopback principle routes transmitted signals back through the same connector to the receive ports — allowing full Tx/Rx validation from a single insertion point. The drawings and datasheets below detail the internal fiber configuration for both 12-fiber and 24-fiber multimode variants.

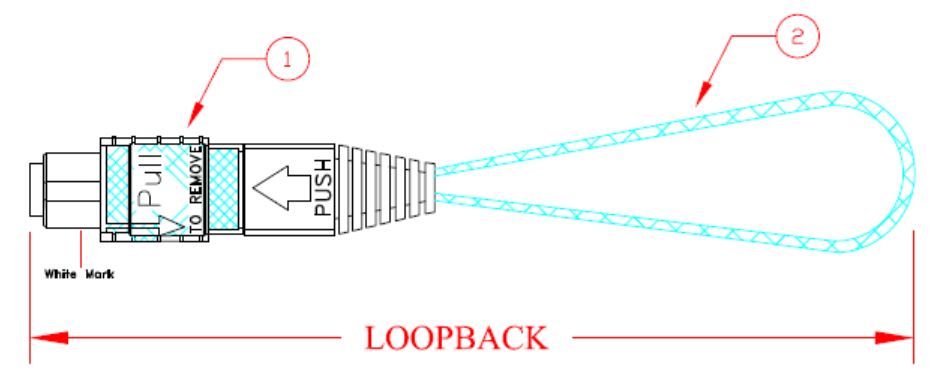

Schematic: internal fiber routing

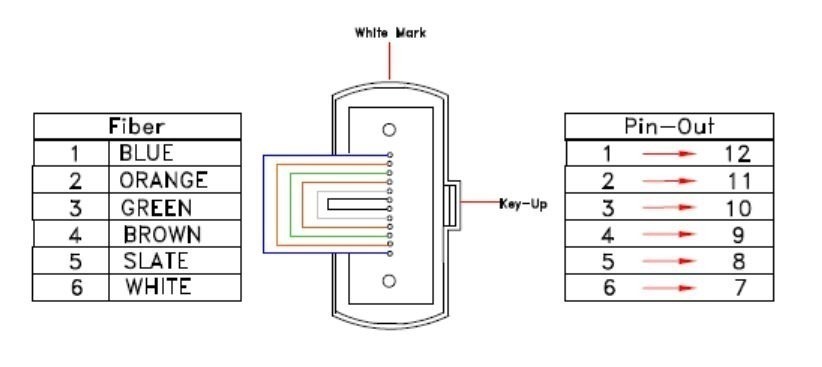

Detail: connector pinout & fiber mapping
Key Features
- MTP/MPO Connector Compatibility Designed for MTP and MPO connectors, ensuring easy integration with QSFP+ modules and other high-speed multimode network interfaces across a wide range of switching and routing hardware.
- 12-Fiber & 24-Fiber Configurations Available in 12-fiber and 24-fiber options to support different network capacities and testing requirements — from standard QSFP+ port testing to high-density 100G transceiver validation.
- High-Speed Network Support Compatible with 10G, 40G, and 100G Ethernet networks across OM2, OM3, and OM4 multimode fiber types, ensuring reliable performance in current and near-future high-speed environments.
- Testing & Troubleshooting Efficiency Enables technicians to loop back signals for testing, allowing efficient troubleshooting and network validation without requiring a far-end device or disrupting live production traffic.
- Compact Plug-and-Play Design The compact form factor ensures quick installation and removal, minimizing downtime during maintenance or upgrades — no tools required, no configuration needed.
Configuration Options
Select the fiber grade and count that matches your transceiver module and network testing requirements.
12-Fiber Multimode Loopback
Standard MTP 12-fiber loopback for testing 40G QSFP+ and 100G multimode transceivers. Internally maps Tx fibers to Rx across the 12-fiber array for full port validation.
24-Fiber Multimode Loopback
High-density 24-fiber MTP loopback for dual 40G and 100G transceiver testing. Doubles test throughput per port insertion in dense switching and data center environments.
OM3 & OM4 Multimode Fiber
Optimized for laser-optimized 50/125µm multimode fiber. OM3 supports 40G/100G to 100m; OM4 extends to 150m — ideal for intra-rack and inter-rack data center test loops.
Custom & OM2 Options
OM2 fiber available for legacy infrastructure testing. Custom connector types, ruggedized housings, and specific fiber counts engineered to your exact network requirements.
Applications
- Data Centers Validate and test high-speed multimode connections between servers and networking devices with minimal disruption — confirming port and transceiver health before placing equipment into service.
- Telecom Networks Test and troubleshoot backhaul links and metro networks for signal quality and fault isolation, without requiring coordination with a far-end site or technician.
- High-Performance Ethernet Networks Ensure smooth operation of 10G, 40G, and 100G Ethernet systems with reliable loopback testing during network commissioning, upgrades, and scheduled maintenance windows.
- Device Validation Test QSFP+ modules and other MTP/MPO-compatible devices to confirm functionality and optical performance before installation — reducing costly troubleshooting after deployment.
How to Choose the Right Loopback Assembly
Matching the loopback to your hardware and fiber type ensures accurate, repeatable test results every time.
Network Speed Requirements
Select assemblies based on your network speed — 10G, 40G, or 100G. Confirm the loopback fiber grade (OM2, OM3, OM4) matches your installed fiber plant for accurate test results.
Connector Compatibility
Verify your devices support MTP/MPO connectors. Confirm connector gender (male/female) and key orientation required by your specific QSFP+ or MTP/MPO transceiver module.
Select Fiber Type
Choose OM3 or OM4 for modern laser-based 40G/100G transceivers, or OM2 for legacy equipment testing. OM4 offers extended reach and tighter tolerances for demanding test environments.
Determine Fiber Count
Choose 12-fiber for standard QSFP+ port testing, or 24-fiber for dual-channel and high-density transceiver validation. Match to your transceiver's MPO interface specification.
