LC to SC Multimode OM5 Ultra Fiber Cable for Ultra-High-Speed Data Transmission
The iFiber Optix LC to SC Multimode OM5 Ultra Fiber Cable is engineered for ultra-high-speed data transmission in modern data centers, enterprise networks, and telecommunication systems.
Featuring Corning ClearCurve 50/125µm OM5 fiber and LC and SC connectors, this cable delivers exceptional bandwidth with SWDM compatibility and future-ready scalability for mixed-connector environments.

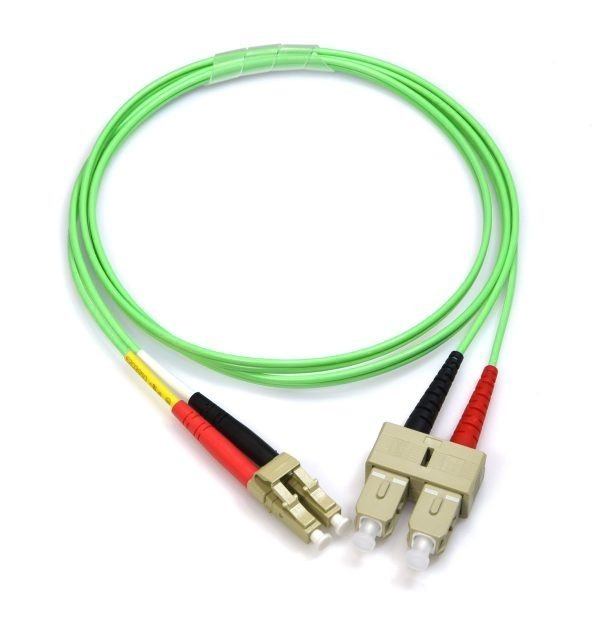

LC to SC Multimode OM5 Ultra Fiber Cable
The LC to SC Multimode OM5 Ultra Fiber Cable features LC and SC connectors paired with OM5 wideband multimode fiber (WBMMF) optimized for shortwave wavelength division multiplexing (SWDM). It supports data rates up to 400 Gbps over short to medium distances, making it ideal for high-bandwidth environments that require flexible connector compatibility.
This cable is a strong fit for data centers, telecom hubs, storage area networks, enterprise LANs, and high-performance computing environments that need ultra-high-speed, future-ready fiber performance.
Performance Specifications
All iFiber Optix LC-SC OM5 multimode assemblies are manufactured and tested to meet or exceed the following optical and mechanical performance specifications.
| Insertion Loss | 0.3 dB |
| Typical Insertion Loss | 0.2 dB |
| Mating Durability (500 cycles) | < 0.2 dB |
| Temperature Range | -40°C to 85°C |
| Max Data Rate | Up to 400 Gbps |
| Available Cable Sizes | 2.0, 1.8, 1.6, and 1.2 mm |
| Connector Type | LC to SC Duplex |
| Fiber Core / Cladding | 50 / 125µm |
| Fiber Type | OM5 WBMMF |
| Part Number | I2570-I-XX-XJ |
| Insertion Loss | < 0.3 dB |
| SWDM Support | Yes |
Key Features
- Ultra-High-Speed Data Transmission OM5 fiber supports data rates up to 400 Gbps, including 100G, 200G, and 400G Ethernet, for the most demanding network environments.
- SWDM Compatibility Designed for shortwave wavelength division multiplexing, transmitting multiple wavelengths on a single fiber to dramatically increase capacity without additional cabling.
- Extended Reach Capable of transmitting 100 Gbps over distances up to 150 meters, making it well suited for medium-range data center and enterprise LAN deployments.
- Low Insertion Loss LC connectors deliver insertion loss below 0.3 dB, ensuring minimal signal degradation and consistent, reliable data transmission.
- Compact High-Density Design The small LC connector footprint enables higher-density fiber connections, maximizing space efficiency in data centers and telecom closets.
- Backward Compatible with OM4 Seamlessly integrates with existing OM4 multimode fiber infrastructure, providing a cost-effective upgrade path to next-generation speeds.
Ideal Applications
LC-SC OM5 multimode cables are commonly used where ultra-high bandwidth, mixed-connector flexibility, and future-proof scalability are critical requirements.
Data Centers
Ideal for high-performance storage systems, cloud computing, and server-to-server communication requiring low latency.
Telecommunication Networks
Used in metro networks and telecom hubs to support ultra-high-speed data transmission over short to medium distances.
Enterprise Networks
Creates low-latency connections between office buildings supporting virtualization and bandwidth-intensive applications.
Storage Area Networks
Connects storage systems and servers, ensuring fast and efficient data exchange in SAN environments.
High-Performance Computing
Essential in HPC environments for low-latency, high-speed communication between compute nodes.
Custom Fiber Builds
Available in custom lengths and ruggedized configurations for specialized high-density deployments.
How to Choose the Right LC-SC OM5 Configuration
Use these considerations to match the cable to your network's performance and infrastructure requirements.
Confirm Bandwidth Requirements
Select OM5 when your installation requires 100G, 200G, or 400G Ethernet with SWDM support and future scalability.
Check Distance Needs
OM5 supports up to 150 meters at 100 Gbps. For shorter runs, OM3 or OM4 may suffice — but OM5 ensures future-proofing.
Verify Connector Compatibility
Confirm that your devices support both LC and SC connectors, or use adapters where necessary for seamless integration.
Plan for Density and Routing
Choose the right cable diameter, jacket type, and length to support clean routing and reliable termination — including ruggedized options for challenging environments.
Why Choose iFiber Optix?
- Quality Assurance Each cable is built and tested for consistent optical performance before shipment.
- Custom Configurations Lengths, jackets, and connector options can be tailored to your project requirements.
- Reliable Support Our team can help you select the right OM5 fiber solution for data centers, enterprise, or telecom deployments.
- Built for Critical Deployments Designed to deliver dependable ultra-high-speed connectivity in demanding, high-density network environments.
Request Information
Ready to spec LC-SC OM5 multimode cables for your next deployment? Our team can help with custom lengths, jacket selection, and bulk pricing.
