LC to SC Multimode OM2 Ultra Fiber Cable for Short-to-Medium Distance Data Transmission
The iFiber Optix LC to SC Multimode OM2 Ultra Fiber Cable is designed to deliver high-speed data transmission over short to medium distances, combining a compact LC interface with a secure SC connector for versatile connectivity across mixed equipment environments.
Built on OM2 multimode fiber, this assembly supports 10 Gbps Ethernet over distances up to 150 meters, making it a reliable solution for LANs, data centers, telecom networks, and campus installations that demand higher performance than OM1 while maintaining cost-effective multimode infrastructure.

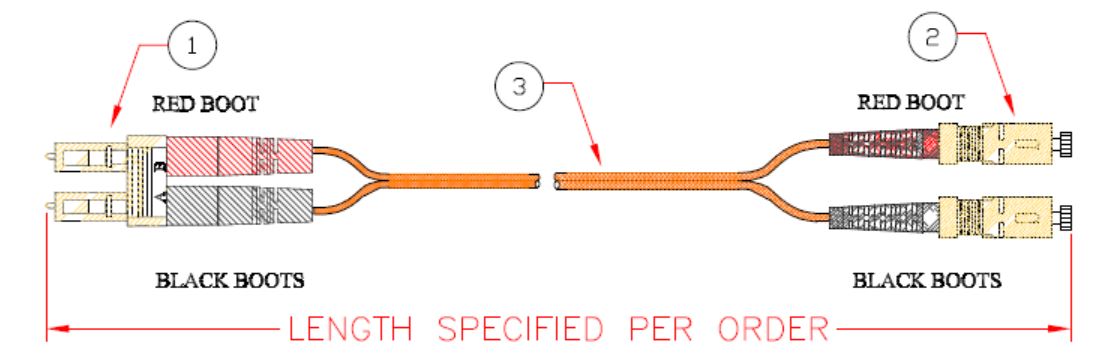

LC-SC Multimode OM2 Ultra Fiber Cable
The LC to SC OM2 cable integrates two widely used connector types — LC on one end and SC on the other — with OM2 multimode fiber optimized for 10 Gbps over medium-length links. LC connectors support high-density termination on panels and active equipment, while SC connectors provide a robust push-pull interface that is standard across many telecom and enterprise environments.
With 50/125µm OM2 fiber and low-loss LC and SC terminations, this hybrid assembly ensures reliable, high-speed data transfer between devices with different interface types, simplifying upgrades and interconnections across mixed-generation infrastructure.
Performance Specifications
All iFiber Optix LC-SC OM2 assemblies are manufactured and tested to meet or exceed the following optical and mechanical performance specifications.
| Insertion Loss | 0.3 dB |
| Typical Insertion Loss | 0.2 dB |
| Return Loss | ≥ 20 dB |
| Mating Durability | <0.2 dB change (500 cycles) |
| Temperature Range | -40°C to +85°C |
| End A Connector | LC/UPC (Duplex) |
| End B Connector | SC/UPC (Duplex) |
| Fiber Core / Cladding | 50 / 125µm |
| Part Number | i2310-I-XX-2J |
| SPC GR-326 Protrusion | +50 / -100 nm |
Key Features
- High-Speed 10 Gbps Performance OM2 multimode fiber supports 10 Gbps Ethernet over distances up to 150 meters, providing the bandwidth required for modern high-traffic applications across enterprise and telecom networks.
- Hybrid LC to SC Connectivity Combines a compact LC connector on one end with a robust SC connector on the other, enabling seamless integration between high-density equipment and legacy or telecom-grade SC hardware.
- Low Insertion Loss & High Return Loss LC and SC connectors are engineered for low insertion loss (≤ 0.3 dB, 0.2 dB typical) and high return loss, minimizing signal degradation and preserving link performance across critical paths.
- Compact & Secure Connector Design LC connectors allow high-density terminations in panels and switches, while SC connectors feature a push-pull locking mechanism for secure, stable connections in active network environments.
- Reliable OM2 Medium-Distance Operation OM2 fiber delivers reliable 10 Gbps performance for short-to-medium distance links, making it an excellent choice for enterprise, data center, and telecom networks that do not require singlemode reach.
- Durable, Long-Life Construction Built from high-quality materials and rated for 500+ mating cycles with minimal loss change, this assembly is designed to withstand frequent patching and environmental stress over its service life.
Ideal Applications
LC-SC OM2 cables are used wherever high-speed, medium-distance connectivity is required between equipment with different connector interfaces.
Local Area Networks
Connects switches, routers, and workgroup equipment over 10 Gbps Ethernet in office and campus LANs where one side is LC-terminated and the other uses SC interfaces.
Data Centers
Provides high-density LC connectivity at the rack level while interfacing to SC-based distribution frames or existing SC patch fields during phased upgrades.
Telecommunication Systems
Links LC-based equipment to SC-terminated panels and frames in telecom facilities, maintaining secure, stable connections across network nodes.
Enterprise Networks
Supports seamless communication across enterprise campuses where equipment with LC ports must connect to SC-based backbone infrastructure over OM2 fiber.
Campus Networks
Used to connect buildings and distribution points across campus environments when link distances and bandwidth requirements align with OM2 10 Gbps capabilities.
Custom & Mixed-Interface Links
Ideal for mixed-interface runs in labs, testbeds, and specialized facilities where LC-based and SC-based devices must interoperate over high-speed multimode links.
How to Configure Your LC-SC OM2 Assembly
Use these guidelines to select the correct LC-SC OM2 configuration for your network.
Confirm Distance & Bandwidth
Verify that your application falls within OM2 limits — up to 10 Gbps over 150 meters. For longer distances or higher speeds, consider OM3, OM4, or singlemode as part of your upgrade path.
Check Connector Compatibility
Ensure the LC connector matches the port type at one end and the SC connector matches the other. If both ends are LC or both are SC, select the appropriate LC-LC or SC-SC assembly instead to minimize adapters and extra loss.
Select Length & Jacket Type
Choose lengths that accommodate your routing with minimal slack. Specify PVC (OFNR) for riser applications, OFNP plenum for air-handling spaces, or ruggedized / specialty jackets for more demanding environments.
Plan for Growth
Consider future upgrades to higher speeds or different fiber grades. LC-SC OM2 patch cords can serve as a flexible bridge during migrations from legacy SC-based systems to newer high-density LC environments.
Why Choose iFiber Optix?
- Consistent, Tested Performance Each LC-SC OM2 assembly is manufactured to strict tolerances and tested before shipment to verify insertion loss, return loss, and mechanical reliability across every cable.
- Custom Cable Options Custom lengths, jacket types (PVC, plenum, LSZH, indoor/outdoor), labeling, and bundling are available to meet the specific needs of your network infrastructure and documentation standards.
- Hybrid Connectivity Expertise Our hybrid LC-SC solutions are designed to simplify mixed-interface deployments, helping you bridge the gap between legacy SC-based systems and modern LC-based platforms.
- Project & Design Support iFiber Optix can assist with cable selection, link budgeting, and large-scale deployment planning to ensure your OM2 infrastructure delivers the performance your applications demand.
Request Information
Need a standard LC-SC OM2 assembly or a fully customized configuration? Our team can help you design the right solution for your network.
