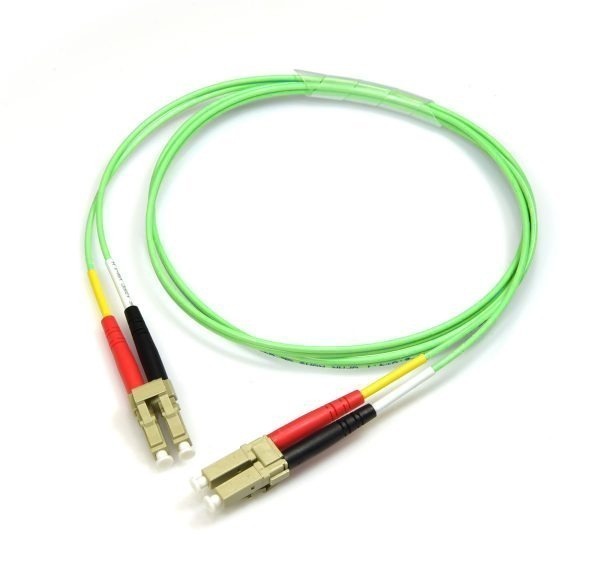

LC to LC Multimode OM5 Ultra Fiber Cable for Ultra-High-Speed Data Transmission
The iFiber Optix LC to LC Multimode OM5 Ultra Fiber Cable is engineered for ultra-high-speed data transmission in modern data centers, enterprise networks, and telecommunication systems.
Featuring Corning ClearCurve 50/125µm OM5 fiber and precision LC connectors, this cable delivers exceptional bandwidth with SWDM compatibility and future-ready scalability.

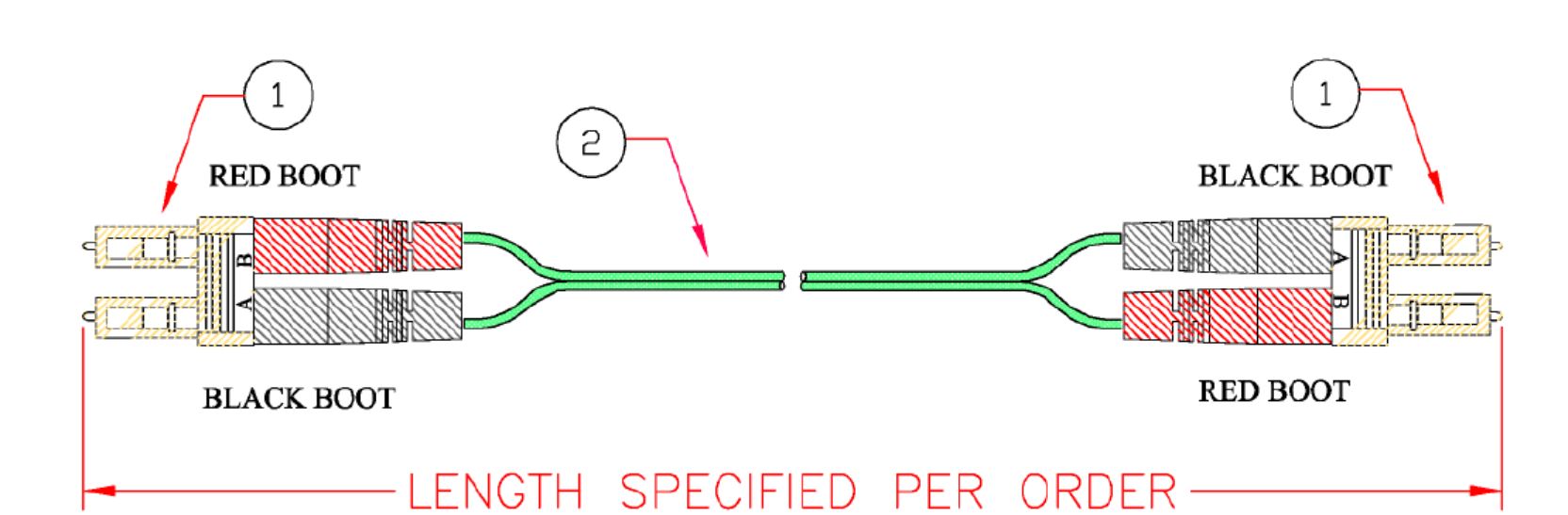

LC to LC Multimode OM5 Ultra Fiber Cable
The LC to LC Multimode OM5 Ultra Fiber Cable features LC connectors on both ends and OM5 wideband multimode fiber (WBMMF) optimized for shortwave wavelength division multiplexing (SWDM). It supports data rates up to 400 Gbps over short to medium distances, making it ideal for high-density, high-performance network environments.
This cable is a strong fit for hyperscale data centers, cloud computing infrastructure, enterprise LANs, and 5G telecom networks that demand maximum bandwidth efficiency.
Performance Specifications
All iFiber Optix LC-LC OM5 multimode assemblies are manufactured and tested to meet or exceed the following optical and mechanical performance specifications.
| Insertion Loss | 0.3 dB |
| Typical Insertion Loss | 0.2 dB |
| Mating Durability (500 cycles) | < 0.2 dB |
| Temperature Range | -40°C to 85°C |
| Max Data Rate | Up to 400 Gbps |
| Available Cable Sizes | 2.0, 1.8, 1.6, and 1.2 mm |
| Connector Type | LC to LC Duplex |
| Fiber Core / Cladding | 50 / 125µm |
| Fiber Type | OM5 WBMMF |
| Part Number | I2570-G-XX-XJ |
| Insertion Loss | < 0.3 dB |
| SWDM Support | Yes |
Key Features
- Ultra-High-Speed Data Transmission OM5 fiber supports data rates up to 400 Gbps, including 100G, 200G, and 400G Ethernet, for the most demanding network environments.
- SWDM Compatibility Designed for shortwave wavelength division multiplexing, transmitting multiple wavelengths on a single fiber to dramatically increase capacity without additional cabling.
- Extended Reach Capable of transmitting 100 Gbps over distances up to 150 meters, making it well suited for medium-range data center and enterprise LAN deployments.
- Low Insertion Loss LC connectors deliver insertion loss below 0.3 dB, ensuring minimal signal degradation and consistent, reliable data transmission.
- Compact High-Density Design The small LC connector footprint enables higher-density fiber connections, maximizing space efficiency in data centers and telecom closets.
- Backward Compatible with OM4 Seamlessly integrates with existing OM4 multimode fiber infrastructure, providing a cost-effective upgrade path to next-generation speeds.
Ideal Applications
LC-LC OM5 multimode cables are commonly used where ultra-high bandwidth, density, and future-proof scalability are critical requirements.
Hyperscale Data Centers
Supports cloud computing, virtualization, and storage networks with ultra-high bandwidth OM5 performance.
Enterprise Networks
Ideal for high-speed LAN and WAN environments handling large volumes of corporate data traffic.
Telecommunication Networks
Supports 5G expansion and high-performance connectivity between critical telecom network nodes.
Cloud Computing
Indispensable for cloud services and virtualized environments requiring fast, reliable data transmission.
Internet Exchange Points
Handles the ultra-high-speed connections required where large volumes of internet traffic converge.
Custom Fiber Builds
Available in custom lengths and configurations for specialized high-density deployments.
How to Choose the Right LC-LC OM5 Configuration
Use these considerations to match the cable to your network's performance and infrastructure requirements.
Confirm Bandwidth Requirements
Select OM5 when your installation requires 100G, 200G, or 400G Ethernet with SWDM support and future scalability.
Check Distance Needs
OM5 supports up to 150 meters at 100 Gbps. For shorter runs, OM3 or OM4 may suffice — but OM5 ensures future-proofing.
Verify Connector Compatibility
Confirm that your hardware accepts LC connectors and that the duplex configuration matches your system's port layout.
Plan for Density and Routing
Choose the right cable diameter and length to support clean routing in high-density environments.
Why Choose iFiber Optix?
- Quality Assurance Each cable is built and tested for consistent optical performance before shipment.
- Custom Configurations Lengths, jackets, and connector options can be tailored to your project requirements.
- Reliable Support Our team can help you select the right OM5 fiber solution for data centers, enterprise, or telecom deployments.
- Built for Critical Deployments Designed to deliver dependable ultra-high-speed connectivity in demanding, high-density network environments.
Request Information
Ready to spec LC-LC OM5 multimode cables for your next deployment? Our team can help with custom lengths, jacket selection, and bulk pricing.
