FC-LC/APC Singlemode Ultra Fiber Cable: Reliable and High-Performance Fiber Solution
The iFiber Optix FC to LC/APC Singlemode Ultra Fiber Cable is a reliable, high-performance fiber solution designed for telecom networks, data centers, and industrial installations that require long-distance, low-loss optical transmission.
Built with Corning SMF28 Ultra Optical Fiber and precision FC and LC/APC connectors, this cable delivers strong signal integrity, low insertion loss, and dependable performance in demanding environments.

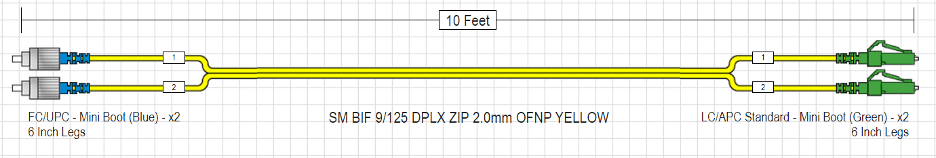

FC to LC/APC Singlemode Ultra Fiber Cable
The FC to LC/APC Singlemode Ultra Fiber Cable combines the secure threaded FC connector with the compact LC/APC connector for low-loss connectivity over long distances. Its singlemode construction supports stable, high-speed transmission in networks where precision and reliability are critical.
This cable is well suited for telecom systems, data centers, and industrial networks that require dependable fiber performance and compact connector density.
Performance Specifications
All iFiber Optix FC to LC/APC singlemode assemblies are manufactured and tested to meet or exceed the following optical and mechanical performance specifications.
| Insertion Loss | 0.3 dB |
| Typical Insertion Loss | 0.15 dB |
| Back Reflection | < -55 dB |
| Back Reflection (Typical) | < -65 dB |
| Temperature Range | -40°C to 85°C |
| Connector Type | FC to LC/APC Duplex |
| Fiber Core / Cladding | 8.33 / 125µm |
| Part Number | I2753-P-XX-XJ |
| Return Loss | ≥ 60 dB |
| Insertion Loss | < 0.3 dB |
Key Features
- Reliable Performance Stable signal transmission supports critical network operations in telecom, data center, and industrial deployments.
- High Durability Built to meet SPC GR-326 geometric requirements for precise and long-lasting optical performance.
- Low Insertion Loss With insertion loss below 0.3 dB, the cable helps preserve optical power across long distances.
- High Return Loss The APC-polished LC side helps reduce back reflection and improve signal integrity.
- Compact and Secure The LC connector offers space-saving density, while the FC connector provides a stable threaded connection.
Ideal Applications
FC to LC/APC singlemode cables are commonly used where compact routing and low-loss precision are both important.
Telecommunications
Ideal for long-distance optical links in telecom networks.
Data Centers
Supports high-density environments requiring dependable low-loss connectivity.
Industrial Networks
Useful in rugged environments where durable, stable fiber performance is needed.
Network Backbones
Well suited for backbone runs and inter-building connections.
Test and Measurement
Appropriate for optical testing and precision lab setups.
Custom Fiber Builds
Available in custom lengths and configurations for specialized deployments.
How to Choose the Right FC to LC/APC Configuration
Use these considerations to match the cable to your network needs.
Confirm Distance Requirements
Select singlemode when your installation requires long-range transmission and low attenuation.
Check Connector Compatibility
Verify that both ends match your hardware and that the FC screw-lock connection fits your system.
Match the Environment
Choose the correct jacket and build style for indoor, outdoor, or mixed-use deployments.
Plan for Routing Needs
Pick a cable length and diameter that support clean routing and reliable termination.
Why Choose iFiber Optix?
- Quality Assurance Each cable is built and tested for consistent optical performance before shipment.
- Custom Configurations Lengths, jackets, and connector options can be tailored to your project.
- Reliable Support Our team can help you choose the right fiber solution for telecom, data center, or industrial use.
- Built for Critical Deployments Designed to deliver dependable long-distance connectivity in demanding network environments.
Request Information
Ready to spec FC to LC/APC singlemode cables for your next deployment? Our team can help with custom lengths, jacket selection, and bulk pricing.
