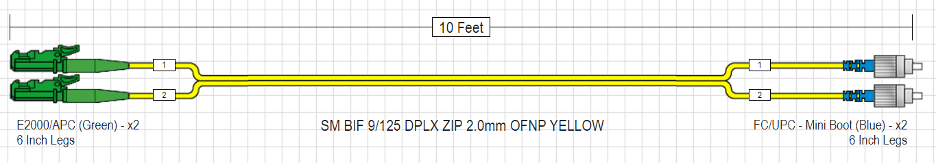

E2000/APC-FC Singlemode Ultra Fiber Cable: High-Quality Fiber Optic Connectivity
Part Number: I2750-Z-XX-XJ
The E2000/APC-FC Singlemode Ultra Fiber Cable features Corning SMF28 Ultra Optical Fiber, delivering exceptional performance with low insertion loss and high back reflection, ideal for advanced network setups.
Key Features of E2000/APC-FC Singlemode Fiber Cable
-
-
-
- Fiber Type: Singlemode (8.33/125um) for accurate and efficient data transmission.
- Low Insertion Loss: Achieves typical loss of 0.15 dB for reliable performance.
- High Back Reflection: Greater than -65dB, ensuring signal quality.
-
-
Benefits
-
-
-
- Superior Performance: Engineered for stable and consistent fiber optic connectivity.
- Durable Construction: Designed to operate in extreme temperatures ranging from -40°C to 85°C.
-
-
Corning SMF28 Ultra Optical Fiber Cable 8.33/125um OFNR/OFNP
Available in 2.0, 1.8, 1.6, and 1.2mm
| Performance Specifications |
| Fiber Type: SINGLEMODE (8.33/125um) |
| Insertion Loss | 0.3dB |
| Typical Insertion Loss | 0.15dB |
| Back Reflection | <-55dB Above |
| Back Reflection (typical) | <-65dB Above |
| Tempreture Range | -40 C to 85 C |
NOTE:
SPC GR-326 Geometric Requirements:
Protrusion/Undercut: +50/-100nm
Enhance your fiber network with the E2000/APC-FC Singlemode Ultra Fiber Cable. Contact Us for a Quote or ShopNow for customized solutions.
